Gas Gas Factory Suspension Service

GasGas

Shock Revalve Options

race tech all gold valve all models

Race Tech Gold Valve – $325

All Models

G3-LD Gold Valves provide better control for any rider by creating more shim leverage and decreasing the angular shim deflection.

Top suspension performance requires firm bottoming resistance with plushness at the same time. Even the best suspension tuners can only make the stock valving design work so well. The Gold Valve Shock Suspension System is a proven bolt-on shock valving system that improves control, traction, performance and bottoming resistance

If Needed:

Springs$110 – $149
SFK Seal Head$65
Basic Seal Head$55
Oil Seal Only$20
Bladder$29
Shock Bumper$29

WP AER / Xact 48

2021 + Gas Gas – MC / EX

Race Tech Revalve – $325

Replaces the Mid-Valve and Compression valve with Gold Valves.  Tuned for your weight and riding style.  Better hold up with less deflection and harshness in the mid stroke.  Price includes labor, fluid and parts, does not include new seals.

race tech spring conversion

Race Tech Spring Conversion – $598

Tired of the inconsistency and having to check the pressure of your Air Fork.  This will replace the air chamber with a spring.  Although heavier then the stock air chamber this eliminates the inconsistency you get with air and has the reliability of a traditional air fork.  The Race Tech conversion uses the lower mounting nut from your stock chamber and has internal pre-load adjustment.  Price includes parts, fluid, spring and labor to install. The price does not include wear items or sales tax.

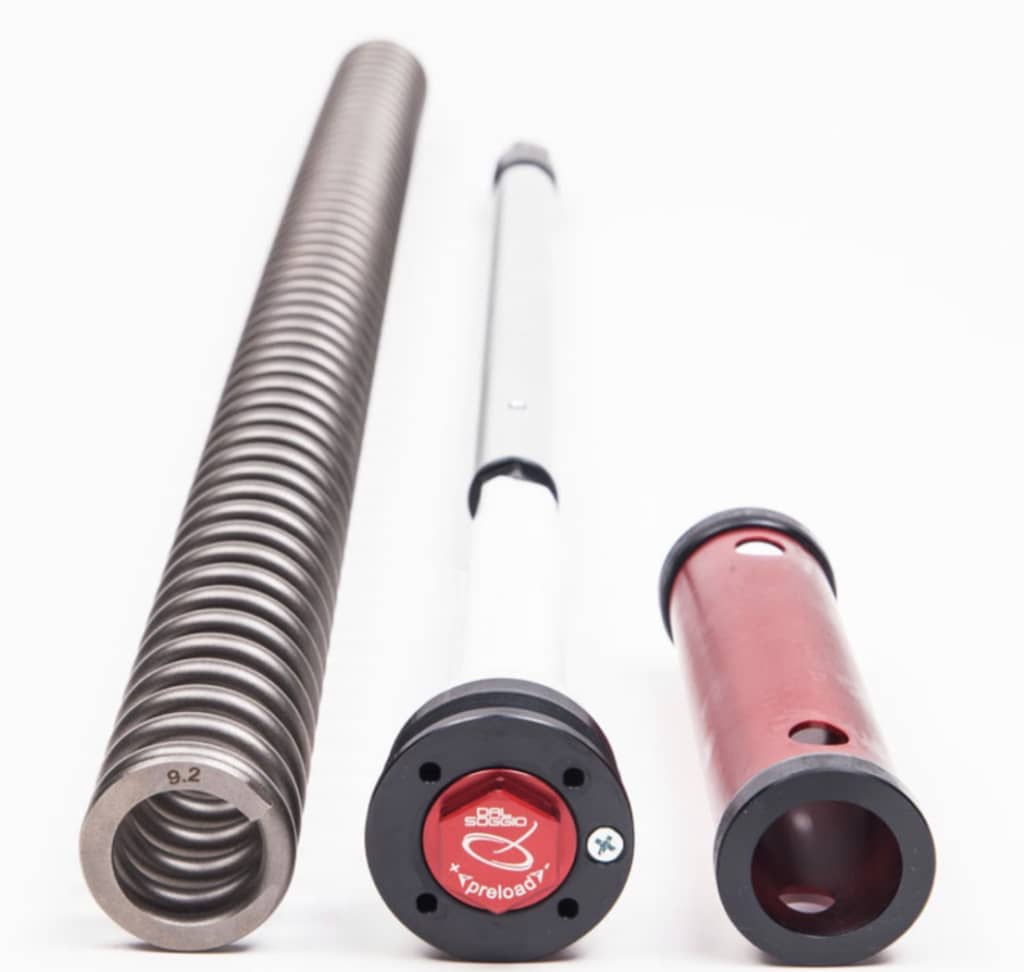

Dal Soggio Spring Conversion

Dal Soggio Spring Conversion – $698

Tired of the inconsistency and having to check the pressure of your Air Fork.  This will replace the air chamber with a spring.  Although heavier then the stock air chamber this eliminates the inconsistency you get with air and has the reliability of a traditional air fork.  The Dal Soggio conversion is a drop in system with external pre-load adjustment.  Price includes parts, fluid, spring and labor to install.  The price does not include wear items or sales tax.

Lainer Suspension Epica Cartridge – $2,099

Our new EPICA Cartridge System is the culmination of years of experience, testing and development into a single project. The main goal for this project was to develop a highly tunable cartridge to allow riders to fine tune their forks in ways that was never before possible. Below is a break down of the key features of this innovative design.

External adjustments:

Compression damping60 clicks of sensitive adjustmentAdjustment at top of cartridge.
Rebound damping50 clicks of sensitive adjustmentLocated at fork bottom
External spring preload adjustment0 to 15mmEasily adjusted with a 16mm socket at the fork bottom.

Innovative Features:

  • Bladder System
  • Our bladder system prevents performance loss that can occur with standard internal spring systems (due to hydraulic support decay).
  • Internal oil compensation with increased volume for better high speed response.
  • Ability to tune bladder pressures via the side bleed spring.
  • EPICA cartridge incorporates Lainer’s Progressive Damping System (PDS) for increased hydraulic damping at the end stroke.
  • PDS system has up to 12 different adjustments for the end stroke stiffness.
  • High Speed compression piston is reversible with a large range of settings.

Technical Specs:

  • Machined from premium 7075 and 6060 alloys and hard anodized.
  • Reversible High Speed compression piston – outer diameter = 38 mm.
  • Side A (Flat valve surface) – 34mm OD shims for motocross and enduro.
  • Side B (Convex valve surface) – 32mm OD shims for supercross.
  • Option to configure Low Speed Valve (LSV) on compression base valve.
  • Cartridge rod diameter = 14 mm (for an increased oil flow).
  • Rebound piston diameter = 25mm for better hydraulic control.
  • Compression high/low speed shims ID 12 mm.
  • Maximum travel = 310 mm.
  • Maximum shim diameter for Mid-Valve By-pass = 21 mm.
  • Ability to set Mid-Valve float clearance with the stack shims.
  • Mid-Valve/By-pass floating shim ID = 6 mm (for a soft response at high speed on the braking bumps).
  • Rebound shims ID = 6 mm (uses triangular mid-valve shims to avoid any oil turbulence on compression).
  • Low friction NBR bottom seal.
  • Ability to extend the cartridge through the nylon washers.

Price includes parts, labor, new seal kit, it does not include springs or sales tax.

Dal Soggio Sphere Cartridge System – $1,999

SPHERE HYDRAULIC CARTRIDGE is an innovative hydraulic cartridge for Race performances by Dal Soggio, excellent for off-road discipline, especially for enduro but also well adaptable and high performing for motocross too. Look Sphere Gallery

Why choose SPHERE?

The answer is very simple. This particular sealed and pressurized cartridge considerably increases precision and sensibility of the forecarriage, giving better feeling on driving. As consequence this will entail beyond safety, also a big pleasure and fun when you’ll ride your motorbike, both you are doing an important race both you are enjoy yourself with friends.


COMPRESSION REGULATOR

Thanks’ to 38 clicks available, it provides a wider and more precise regulation of compression.


AUTOMATIC BLEED VALVE

The automatic bleed valves are calibrated one by one in our laboratory, to ensure the correct internal pressure.


BLADDER

The pressurized bladder system guarantees a greater sensitivity to the fork.


COMPRESSION PISTON

The compression piston is made in ERGAL 7075 with an hard oxidation treatment. The oil’s crossings are 4 and no more 3 to ensure a greater and more precise oil flow.


REBOUND PISTON

The compression piston is made in ERGAL 7075 with an hard oxidation treatment.

The 4 oil’s crossings decrease the wear of oil and shims. The slide camp (made with teflon treatment) serves to give a greater sensitivity to the hydraulic cartridge.


REBOUND REGULATOR

Thanks’ to 38 clicks available, it provides a wider and more precise regulation of rebound.


FAST PRELOAD

It gives the possibility to preload in a simple and fast the fork, without having to remove the hydraulic cartridge from the fork.


ROD OIL SEAL

The particular profile of the lip seal is adapted to avoid the slip-stick effect on the small movements of the shock.

Price includes parts, labor, new seal kit, it does not include springs or sales tax.
