Race Tech Gold Valve Compression Only

Type 3 Gold Valves are the latest version of our bolt-on fork valving system for cartridge forks. Gold Valves significantly improve the flow over stock pistons, putting valving control on the shim stack instead of the piston. This results in outstanding tuneability, improved control, traction, plushness and bottoming resistance.

Race Tech Gold Valve Compression / Rebound

Combo Kits include both Compression as well as Rebound/Mid-Valve Kits with a significant cost savings over purchasing these kits separately. In the “good ‘ole days” we got away with just Compression Valving improvements. However, Rebound/Mid-Valves are critical for any modern hi-performance valving setup.

Type 3 Gold Valves are the latest version of our bolt-on fork valving system for cartridge forks. Gold Valves significantly improve the flow over stock pistons, putting valving control on the shim stack instead of the piston. This results in outstanding tuneability, improved control, traction, plushness and bottoming resistance.

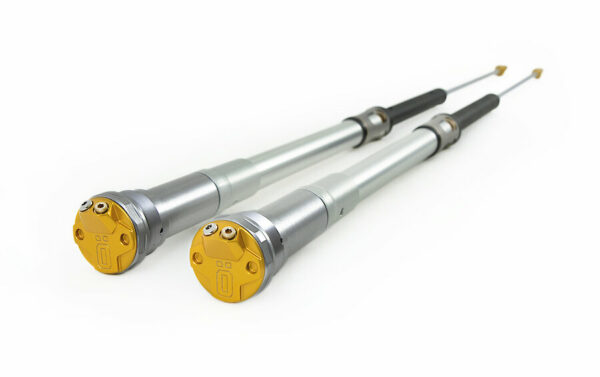

Ohlins TTX Cartridge Kit

Off-Road TTX Cartridge Kit CRF250R 18-23, CRF450R 17-23, KX450F 19-23, RMZ450 18-23

If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D. The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models. The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology. The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation. The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm. All other details are made in aluminum. Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control. Available for most major models on the market.  Note! This kit requires springs and oil which are sold separately.

TECH

• Cartridge kit with patented TTX design
• Gas pressurized damping system for immediate damping response
• Easy installation in OE front forks
• External compression adjuster
• External rebound adjuster
• Improved hydraulic stops to improve bottoming resistance
• Springs, oil and installation tools sold separately.
• New top out rubber for smoother top out feeling
• Available for all major MX and Enduro models
